Specifications
System |
|
|
OS |
Embedded Linux |
Video |
|
|
Network Input |
16 CH IPC input |
|
Incoming/ Outgoing Bandwidth |
160Mbps / 160Mbps |
|
Network Input Resolution |
8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI× 1 : 1024x768 / 1280x1024 / 1920x1080 / 3840x2160@30ps/3840x2160@60fps VGA × 1 : 1024x768 / 1280x1024 / 1920x1080 |
|
Compression |
Standard H.264 / H.265 |
Audio |
|
|
Network Input |
16 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
|
Compression |
G.711(U/A) |
Record |
|
|
Record Stream |
Dual stream recording |
|
Resolution |
8MP/5MP/4MP/3MP/1080P/1280 × 1024 /960P / 720P /960H /D1/CIF |
|
Frame Rate |
NTSC: 30fps; PAL: 25fps |
Playback |
|
|
Simultaneous Playback |
Max. 16 CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time,different colors refers to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc |
Alarm |
|
|
Mode |
Manual, sensor, motion, enception |
|
Input |
8 CH local alarm input; support 16/32 CH IPC aralm input |
|
Output |
4 CH |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Face |
|
|
Channel |
16 CH |
|
Face Picture Database |
32 libraries 5000 Face Pictures |
|
Computing Capability |
180 pictures / minute |
|
Face Picture Search |
Search by picture is supported |
|
Database Management |
Add, modify, delete and search face pictures |
|
Face Picture Adding |
Add face pictures through APP, WEB and external import |
|
External face picture enrollment |
Resolution：128 x 128 ～ 1920 x 1080 Size：≤ 70KB Format : jpg&jpeg |
|
Face Picture Comparison |
Supports allow list and block list alarm |
|
Face Track |
Yes |
|
Map of Face Track |
Reolution： ≤2560 x 1920 Size：≤ 512KB Format : jpg&jpeg |
|
Statistic Graph of Face Information |
Bar graph, pie chart |
|
Statistic Mode of Face Information |
Statistics by day, week, month, quarter as well as customized time period |
Decoding Capability
|
|
|
Live View/ Playback |
1CH 8MP/ 4CH 1080P |
Network |
|
|
Interface |
Rj45 1000 Mbps × 2 |
|
Protocol |
TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x |
Mobile Device
|
|
|
OS |
iOS, Andriod |
Storage
|
|
|
HDD Interface |
SATA × 2, max 10T per HDD |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |

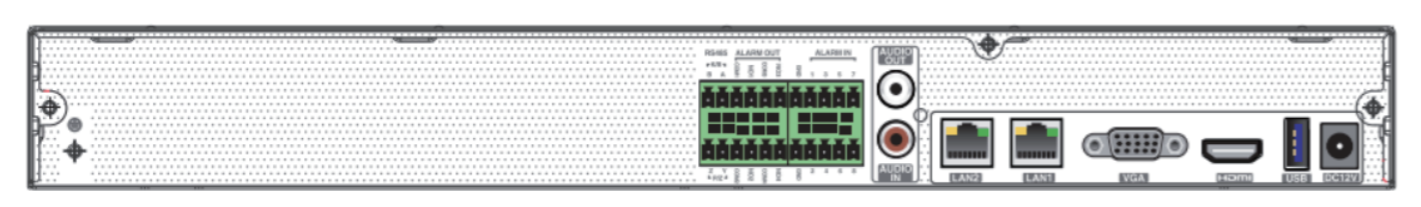

Port |
|
|
USB |
USB 2.0 × 1, USB 3.0 × 1 |
|
Remote Controller |
Optional |
|
RS485 |
Yes (full-duplex), connect to PTZ or keyboard |
Others |
|
|
Power Supply |
DC12V/2A |
|
Consumption |
≤ 10W ( without HDD ) |
|

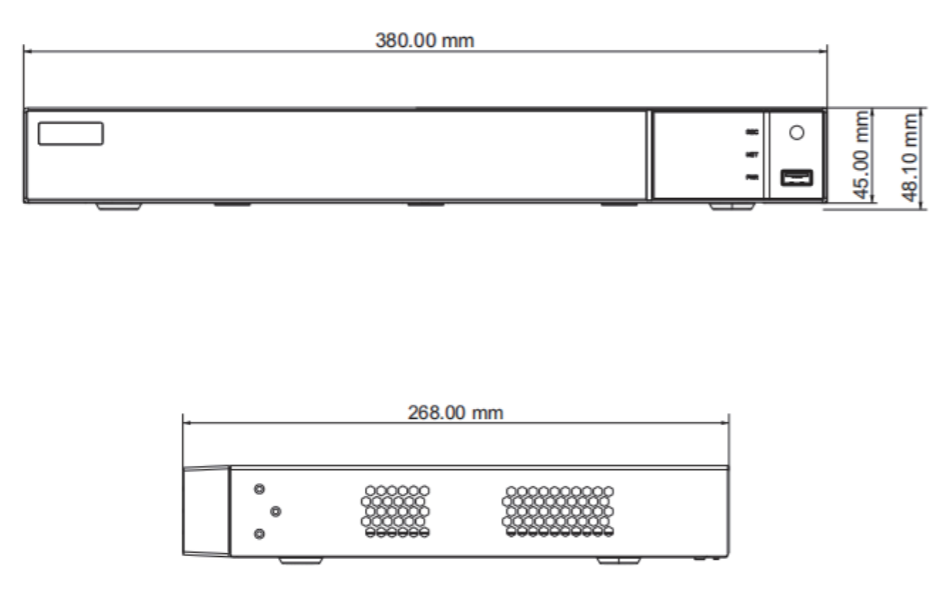

Dimensions(mm) |
380 × 269 × 45 ( W × D × H ) |
|
Work Environment |
-10 ～ 50 ℃，10% ～ 90% humidity |
