Specifications
System |
|
|
OS |
Embedded Linux |
Video |
|
|
Compression |
Standard H.265/H.264 |
|
IP Video Input |
8CH IPC input |
|
Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 1024/960P/ 720P/960H/D1/CIF |
|
Network Bandwidth |
80Mbps/80Mbps (incoming/outgoing) |
|
Output |
HDMI×1: 3840×2160/1920×1080/1280 ×1024/1024×768 HDMI×2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 / 1280 × 1024 × 768 |
Audio |
|
|
Network Input |
8 CH IPC audio input |
|
2-way Audio |
RCA x 1 |
|
Local Output |
RCA x 1 |
|
Compression |
G.711(U/A) |
|
HDMI Audio Output |
Yes |
Record |
|
|
Record Stream |
Dual stream recording |
|
Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
|
Frame Rate |
NTSC: 30fps; PAL:25fps |
Decoding Capability |
|
|
Live View/ Playback |
1CH 12MP/4CH 5MP/8CH 720P |
Playback |
|
|
Simultaneous Playback |
Max 8 CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record evwents |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Face |
|
|
Face Detection Performance (AI by IPC) |
8 CH |
|
Face Detection Performance (AI by Device) |
4 CH |
|
Face Match Performance |
8 CH |
|
Comparison Capability |
36 pictures / second |
|
Face Detection Database |
32 libraries ,10000 Face Pictures |
|
Face Picture Search |
Search by picture is supported |
|
Database Management |
Add, modify, delete and search face pictures |
|
Face Picture Adding |
Add face pictures through APP, WEB and external import |
|
External face picture enrollment |
Resolution：128 x 128～ 1920 x 1080 Size：≤ 70KB Format : jpg&jpeg |
|
Face Picture Comparison |
Supports allow list, block list and stranger match alarm |
|
Face Track |
Yes |
|
Map of Face Track |
Reolution：≤2560 x 1920 Size：≤ 512KB Format : jpg&jpeg |
|
Statistic Graph of Information |
Bar graph |
|
Statistic Mode of Information |
Statistics by day, week, month, quarter as well as customized time period |
Alarm |
|
| Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
8 CH local alarm input; supports IPC alarm input |
| Output | 4CH |
| Tiggering |
Record, snap, preset, e-mail, etc. |
PoE |
|
| PoE Port |
RJ 45 100Mbps × 8 |
|
Standard |
IEEE802.3af |
|
Output Power |
≤ 96W |
Network |
|
| Interface |
RJ45 10 / 100 / 1000 Mbps × 1 |
|
Protocol |
TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x |
Mobile Device |
|
| OS |
iOS, Andriod |
Storage
|
|
|
HDD Interface |
SATA × 1, max 10T; E-SATA× 1 |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
External Interface |
|
|
RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
|
USB |
USB 3.0 × 2, USB 2.0 × 2 |
|
Remote Controller |
Optional |
Others |
|
|
Power Supply |
DC48V/2.5A |
|
Consumption |
≤ 50W ( without HDD and PoE power supply ) |
|

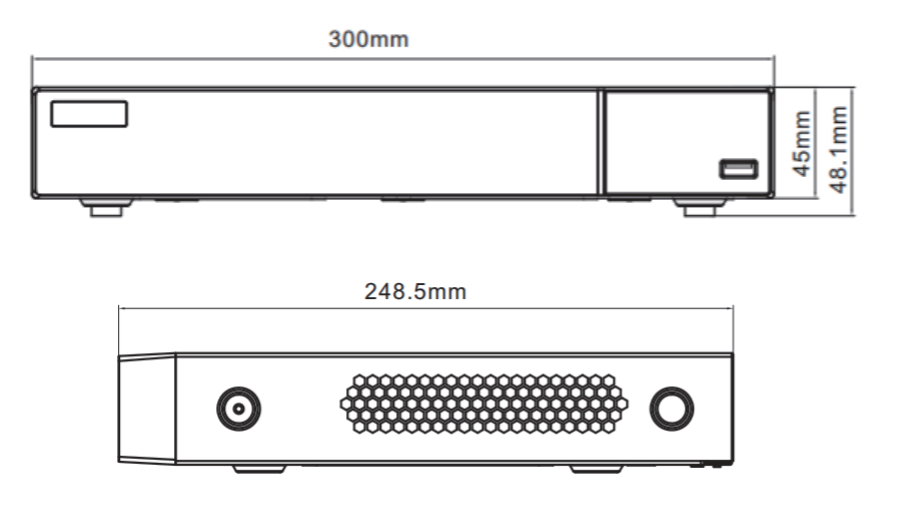

Dimensions（mm） |
300 × 249 × 45 ( W × D × H ) |
|
Working Environment |
-15 ～ 55 ℃，10% ～ 90% humidity |
