Specifications
System |
||
| OS |
Embedded Linux |
|
Video |
||
|
Model |
QVN3364-16 |
QVN33128-16 |
|
IP Video Input |
64 CH |
|
|
Incoming Bandwidth |
640Mbps |
640Mbps |
|
Outgoing Bandwidth |
Display Priority: 128 Network Priority: 640 |
Display Priority: 128 Network Priority: 640 |
|
IP Video Input Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P/960H/D1/CIF |
|
|
Compression |
Standard H.264/H.265 |
|
|
Output |
HDMI1 : 3840 × 2160@60fps / 3840 × 2160@30fps/ 1920 × 1080 /1280 × 1024 / 1024 × 768; HDMI2: 1920 × 1080 / 1280 × 1024 / 1024× 768; HDMI3: 1920 × 1080 / 1280 × 1024 / 1024 × 768; HDMI4:1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1: 1920 × 1080 / 1280× 1024 / 1024 × 768 |
|
Audio |
||
|
Model |
QVN3364-16 |
QVN33128-16 |
|
Network Input |
16 CH |
32 CH |
|
2-way Audio |
RCA × 1 |
|
|
Local Output |
RCA × 1 |
|
|
Compression |
G.711(U/A) |
|
|
HDMI Audio Output |
Yes | |
Record |
||
|
Model |
QVN3364-16 |
QVN33128-16 |
|
Record Stream |
Dual stream recording |
|
|
Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
|
Frame Rate |
25fps (PAL) / 30fps(NTSC) |
|
|
Mode |
Manual, timer, motion, sensor, smart events |
|
Playback |
||
| Model |
QVN3364-16 |
QVN33128-16 |
|
Simultaneous Playback |
Max 16 CH |
|
| Search |
Time slice / time / event / tag search |
|
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
Decoding Capability |
||
| Model |
QVN3364-16 |
QVN33128-16 |
|
Live View/ Playback |
1CH 12MP/4CH 5MP/9CH 720P/16CH 720P |
|
Alarm |
||
| Model |
QVN3364-16 |
QVN33128-16 |
| Mode |
Manual, sensor, motion, exception, smart events |
|
| Input |
24 CH local alarm input; support IPC alarm input |
|
| Output | 8CH | |
|
Triggering |
Record, snap, preset, e-mail, etc. |
|
Network |
||
| Model |
QVN3364-16 |
QVN33128-16 |
|
Interface |
RJ 45 10 / 100 / 1000 Mbps × 2 |
|
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs,802.1X, RTSP, ONVIF |
|
Face |
||
| Model | QVN3364-16 | QVN33128-16 |
|
Face Detection Performance (AI by IPC) |
64CH | 128CH |
|
Face Detection Performance (AI by Device) |
4CH | |
|
Face Match Performance |
16CH | 16CH |
|
Comparison Capability |
36 pictures / second |
|
|
Face Detection Database |
32 libraries ,10000 Face Pictures |
|
|
Face Picture Search |
Search by picture is supported |
|
|
Database Management |
Add, modify, delete and search face pictures |
|
|
Face Picture Adding |
Add face pictures through APP, WEB and external import |
|
|
External face picture enrollment |
Resolution：128 x 128～ 1920 x 1080 Size：≤ 70KB Format : jpg&jpeg |
|
|
Face Picture Comparison |
Support allow list, block list and stranger match alarm |
|
|
Face Track |
Yes | |
|
Map of Face Track |
Reolution：2560 x 1920 Size：≤ 512KB Format : jpg&jpeg |
|
|
Statistic Graph of Information |
Bar graph |
|
|
Statistic Mode of Information |
Statistics by day, week, month, quarter as well as customized time period |
|
Mobile Device |
|
|
| OS |
iOS, Andriod |
|
Storage |
||
|
HDD Interface |
SATA × 16, max 10T per HDD; e-SATA × 1 |
|
|
RAID Type |
RAID0, 1, 5, 6, 10 |
|
Backup |
||
|
Local Backup |
U disk, USB mobile HDD |
|
|
Network Backup |
Yes | |

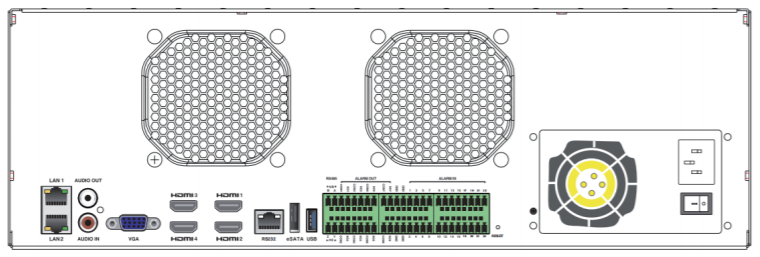

External Interface |
||
| USB |
USB 2.0 × 2; USB3.0 × 1 |
|
|
Remote Controller |
Optional | |
|
RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
|
|
RS 232 |
Yes | |
| Reset | Yes | |
Others |
||
|
Power Supply |
ATX 300W |
|
|
Consumption |
≤ 50W ( without HDD ) |
|
|

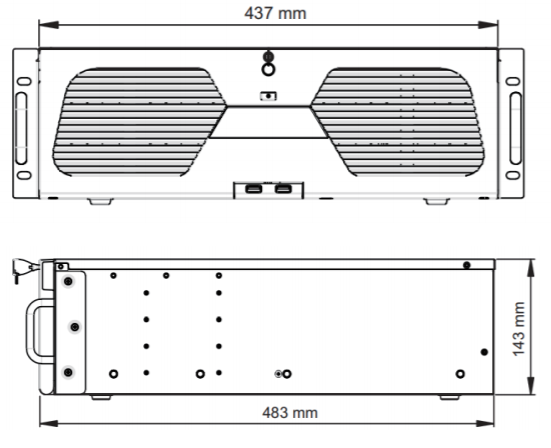

Dimensions（mm） |
437 × 483 × 143 |
|
|
Working Environment |
-15 ～ 50 ℃，10% ～ 90% humidity |
|
