Specifications
Camera |
|
|
Image Sensor |
1 / 3 "CMOS |
|
Image Size |
2592 × 1520 |
|
Electronic Shutter |
1 / 30 s ~ 1 / 100000 s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
|
Lens |
2.8~12mm@F1.4, motorized zoom lens Horizontal field of view:94.2°~29.8° |
|
Lens Amount |
Φ14 |
|
Wide Dynamic Range |
120dB |
| BLC | Yes |
|
HLC |
Yes |
| Defog | Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Interfaces |
|
| Network |
RJ45 |
|
Audio |
1CH audio input; 1CH audio output |
| Storage |
Built-in micro SD card slot; up to 128GB |
|
Reset |
Yes |
|
Video Output |
CVBS output (BNC × 1) |
|
Alarm |
1CH alarm input; 1CH alarm output |
Image |
|
| Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
|
Sub Stream |
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Bit Rate |
64 Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
PoE |
Yes , IEEE802.3af |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
|
Smart Alarm |
Motion detection, SD card error, SD card full IP address conflict, cable disconnection |
| General function |
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
| IR Distance | 50~70m |
|
Ingress Protection |
IP67 |
Others |
|
|
Power Supply |
DC12V / PoE |
| Power Consumption |
< 10W |
|

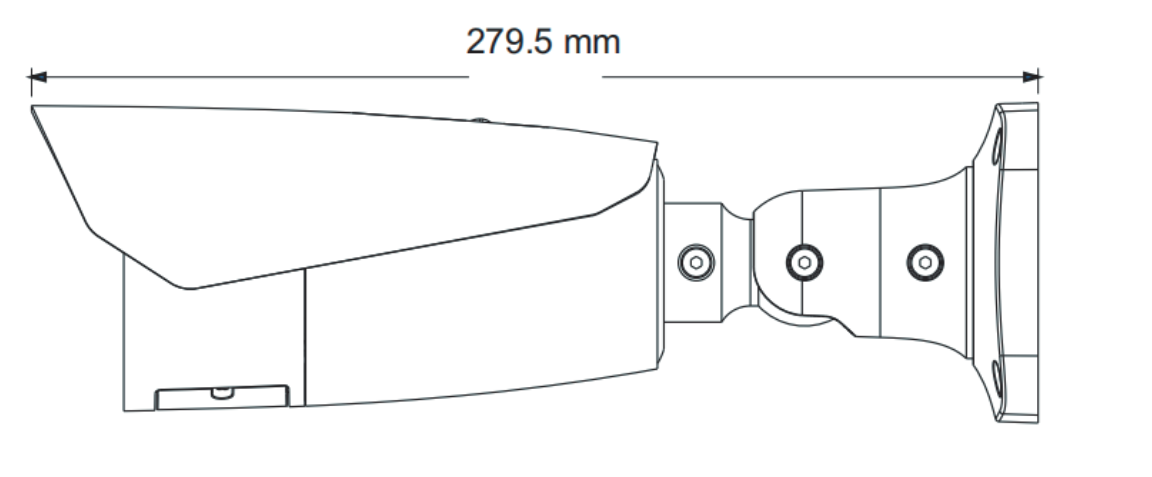

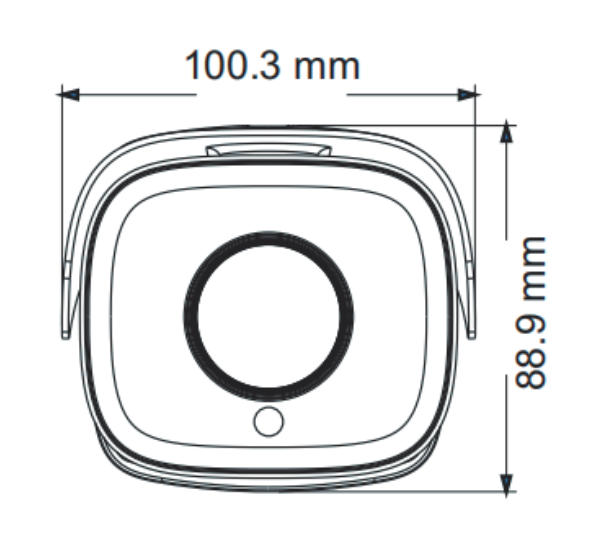

Dimensions ( mm ) |
279.5 × 100.3 × 88.9 |
|
Operating Environment |
-30 °C ~ 60°C(-22°F~140°F） Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 1.04KG |
|
Installation |
Ceiling mounting; Wall mounting |
