Specifications
Camera |
|
Image Sensor |
1 / 3 "CMOS |
Image Size |
2592 × 1520 |
Electronic Shutter |
1 / 30 s ~ 1 / 100000 s |
Iris Type |
Fixed Iris |
Min. Illumination |
0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
Lens |
2.8 mm @F1.6, horizontal field of view: 100.4° 3.6 mm @F1.6, horizontal field of view: 80.6° |
Lens Amount |
M12 |
Wide Dynamic Range |
120dB |
BLC | Yes |
HLC |
Yes |
Defog | Yes |
Digital NR |
3D DNR |
Angle Adjustment |
Pan: 0°~355°; Tilt:0°~67°; Rotation: 0°~355° |
Interfaces |
|
Network |
RJ45 |
Audio |
1CH audio input; Built-in MIC × 1 |
Storage |
Built-in micro SD card slot; up to 128GB |
Hardware Reset |
Yes |
Video Output |
No |
Image |
|
Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
Sub Stream |
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Bit Rate |
64 Kbps ~ 8 Mbps |
Bit Rate Type |
VBR / CBR |
Audio Compression |
G711A / U |
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
ROI |
Each ROI to be configured separately |
Functions |
|
Remote Monitoring |
Web browsing, CMS remote control |
Interface Protocol |
ONVIF |
Storage |
Network remote storage; micro SD card storage |
PoE |
Yes , IEEE802.3af |
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
Smart Alarm |
Motion detection, SD card error, SD card full |
General function |
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
IR Distance | 20~30m |
Ingress Protection |
IP67& IK10 |
Intelligent Analytics |
Object abandoned/missing detection, region entrance/exiting/intrusion detection (human/vehicle classification), line crossing detection(human/ vehicle classification), video tampering detection, scene change detection, face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking |
Others |
|
Power Supply |
DC12V / PoE |
Power Consumption |
< 7W |

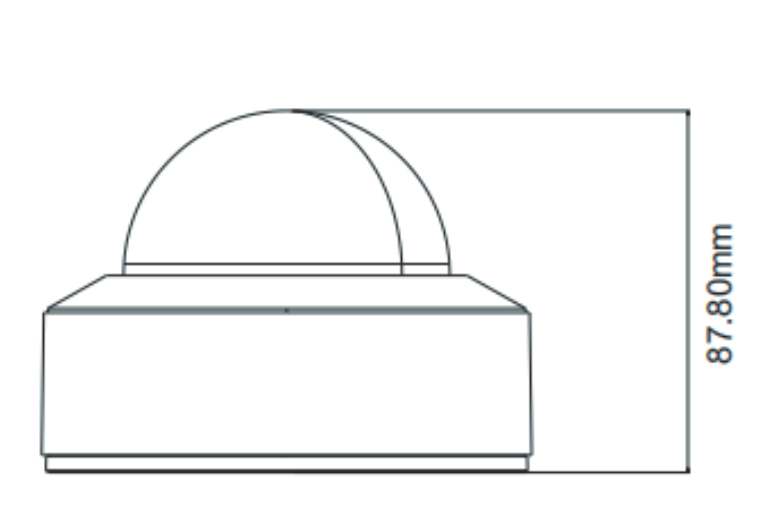

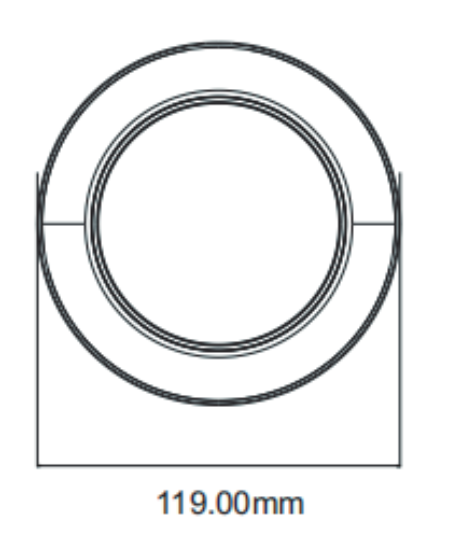

Dimensions ( mm ) |
Φ 119 × 87.8 |
Operating Environment |
-30 °C ~ 60°C(-22°F~140°F) Humidity: less than 95 %(non-condensing) |
Weight ( net ) |
Approx. 0.65KG |
Installation |
Ceiling mounting; Wall mounting |
