Specifications
Camera |
|
|
Image Sensor |
1 / 2.8 "CMOS |
|
Image Size |
3840×2160 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.01 lux @ F1.2,AGC ON; 0 lux with IR 0.02 lux @ F1.6,AGC ON; 0 lux with IR |
|
Lens |
2.8mm@F1.6, Horizontal FoV:109.7°; Vertical FoV:77.2°;Diagonal FoV:116.9° |
|
Field of View |
Horizontal: 109.7°; Vertical: 77.2°; Diagonal: 116.9° |
|
Focus |
Fixed |
|
Day&Night |
ICR |
|
Lens Amount |
M12 |
|
BLC |
Yes |
|
HLC |
Yes |
| Defog | Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Interfaces |
|
| Network |
RJ45 |
|
Audio |
1CH audio input |
| Storage |
Built-in micro SD card slot; up to 128GB |
|
Hardware Reset |
Yes |
|
Video Output |
No |
Image |
|
| Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~30fps) 50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps) |
|
Sub Stream |
720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
|
Third Stream |
D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
|
Bit Rate |
64 Kbps ~ 12 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
|
Audio Compression |
G711A / U |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
PoE |
Yes , IEEE802.3af |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
|
Smart Alarm |
Motion detection, SD card error, SD card full |
| General function |
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
| IR Distance | 30~50m |
|
Ingress Protection |
IP67 |
Intelligent Analytics (Smart Events) |
|
|
Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
|
Target Counting |
Line crossing human/motor vehicle/non-motor vehicle counting |
|
Exception Detection |
Scene change, video blur and video color cast detection |
|
Face Detection |
Face detection and face capture |
|
General Intelligence |
Crowd density detection, heat map, object abandoned/missing detection* |
Others |
|
|
Power Supply |
DC12V / PoE |
| Power Consumption |
< 9W |
|

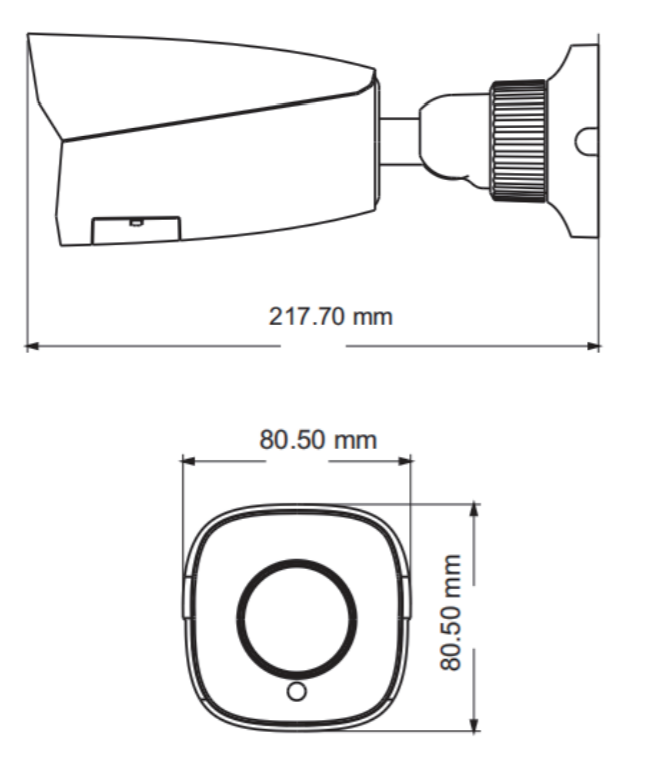

Dimensions ( mm ) |
217.7 × 80.5 × 80.5 |
|
Operating Environment |
-30 °C ~ 60°C(-22°F~140°F） Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 0.648KG |
|
Installation |
Ceiling mounting; Wall mounting |
