Specifications
Camera |
|
|
Image Sensor |
1 / 2.8 "CMOS |
|
Image Size |
1920 × 1080 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
DC-Iris |
|
Min. Illumination |
0.0026 lux@F1.2,AGC ON; 0 lux with IR 0.005 lux@F1.65,AGC ON; 0 lux with IR |
|
Lens |
Motorized zoom lens, 7~22mm@F1.4, horizontal FoV: 44°~17.6° Recommended face capturing distance: 4~10m |
|
Lens Amount |
Φ14 |
|
Wide Dynamic Range |
120dB |
| BLC | Yes |
|
HLC |
Yes |
| Defog | Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Image |
|
| Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
60Hz:1080P/720P(1~30)fps ; 50 Hz:1080P/720P(1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps/50fps) |
|
Sub Stream |
60Hz : 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF (1~25fps) |
|
Third Stream |
60Hz : D1/CIF/480x240 (1~30fps); 50Hz: D1/CIF/480x240 (1~25fps) |
|
Bit Rate |
64 Kbps ~ 6 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
|
Audio Compression |
G711A / U |
Interfaces |
|
|
Network |
RJ45 |
| Audio |
1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot; up to 128GB |
|
Hardware Reset |
Yes |
|
Video Output |
No |
| Alarm |
1CH alarm input; 1CH alarm output |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
PoE |
Yes (802.3af) |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
|
Smart Alarm |
Motion detection; Sensor alarm; SD card full; SD card error; IP address conflict; Network disconnection |
| General function |
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction, etc |
| LED View Distance | 10m soft light |
|
Ingress Protection |
IP67 |
Face |
|
|
Face Detection |
Pupil distance of a facial image over 20 pixel can be detected |
|
Face Capturing |
By precise detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots |
|
Panorama Capturing |
Support panorama capturing and self-defined information overlay, like device ID, time, etc. |
| Intelligent Light Compensation |
Built-in high efficient white light LEDs, time switch available |
|
Face Picture Database |
10000 face pictures |
|
Database Management |
Add, modify, delete and search face pictures |
|
Face Picture Adding |
Add face pictures through WEB and Face Album Manager Tool |
|
External Face Picture Enrollment |
Size: less than 70KB Format: jpg, jpeg |
|
Face Picture Comparison Alarm |
Support face trigger alarm Support allow list, block list, stranger alarms |
Others |
|
|
Power Supply |
DC12V / PoE |
| Power Consumption |
< 12W |
|

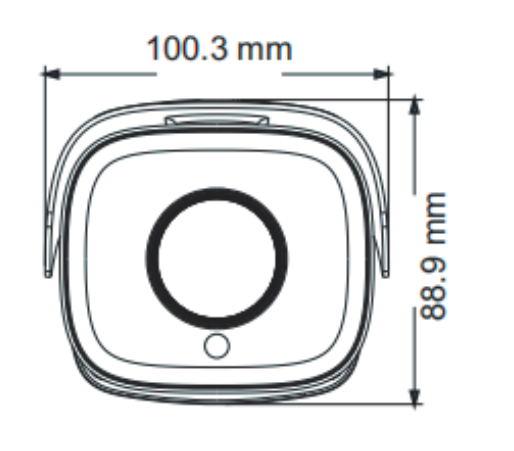

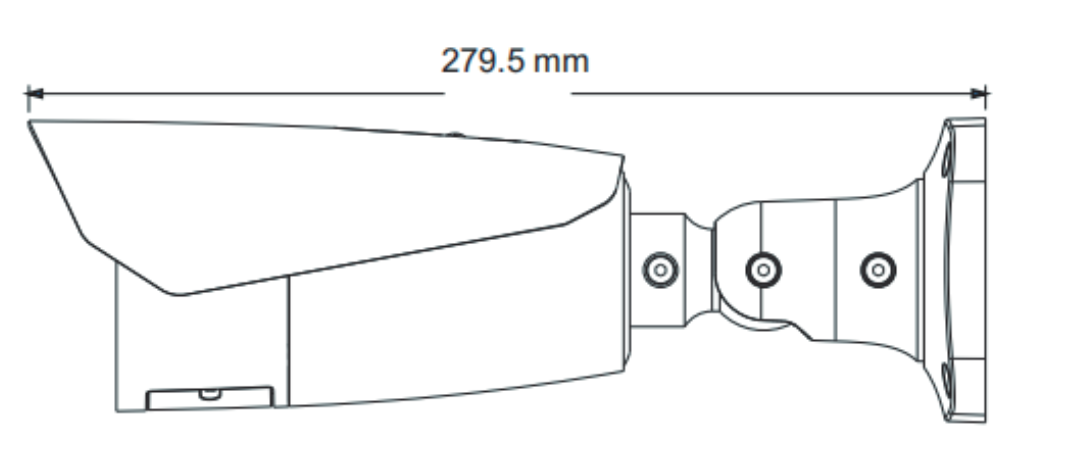

Dimensions ( mm ) |
279.5 × 100.3 × 88.9 |
|
Operating Environment |
-30 °C ~ 60°C(-22°F~140°F） Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 1.04KG |
|
Installation |
Ceiling mounting; Wall mounting |
