Specifications
System |
|
|
Embedded Linux |
|
Video |
|
|
Network Input |
8 CH IPC input |
|
Compression |
Standard H.265 / H.264 |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA × 1 : 1920×1080/1280×1024/1024×768 |
Audio |
|
|
Network Input |
8 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
| Compression |
G.711(U/A) |
Record |
|
|
Record Stream |
Dual stream recording |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC:30fps; PAL:25fps |
Playback |
|
|
Simultaneous Playback |
Max 8 CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record evwents |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Alarm |
|
| Mode |
Manual, sensor, motion,enception |
|
Input |
Supports IPC alarm input |
| Output | Supports IPC alarm output |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Network |
|
|
Interface |
RJ 45 × 1 (10/100/1000Mbps) |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x |
|
Incoming/ Outgoing Bandwidth |
80/80 (Mbps) |
Mobile Device |
|
| OS |
iOS, Andriod |
Storage |
|
| HDD | SATA3.0 × 1, max 8T |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
Port |
|
| USB |
USB 2.0 x 2 |
|
Remote Controller |
Optional |
PoE |
|
|
PoE Ports |
100M RJ45 × 8 |
|
Standards |
IEEE802.3af |
|
Output Power |
≤ 96W |
Decoding Capability |
|
|
Live View/ Playback |
1CH 8MP 4CH 1080P |
Others |
|
| Power Supply |
DC 48V/2.5A |
|
Consumption |
≤ 10w (without HDD) |
|

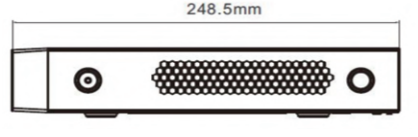

Dimensions(mm) |
300 × 249 × 45( W × D × H ) |
|
Work Environment |
-10 ~ 50 ℃, 10% ~ 90 % humidity |
