Specifications
System |
||
| Model | QVN3116-2 |
QVN3132-2 |
|
OS |
Embedded Linux |
|
Video |
||
| Model | QVN3116-2 |
QVN3132-2 |
|
Network Input |
16 CH IPC input |
32 CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
|
Output |
HDMI× 1 : 3840 × 2160 / 1920 × 1080 / 1280× 1024/ 1024 × 768 VGA× 1: 1920 × 1080 / 1280× 1024/ 1024 × 768 |
|
|
Compression |
Standard H.264 / H.265 |
|
Audio |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Network Input |
16 CH IPC audio input |
32 CH IPC audio input |
|
2-way Audio |
RCA × 1 | |
|
Local Output |
RCA × 1 |
|
|
Compression |
G.711(U/A) |
|
Record |
||
| Model | QVN3116-2 | QVN3132-2 |
|
Record Stream |
Dual stream recording |
|
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
| Frame Rate |
P:25fps; N:30fps |
|
Playback |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Simultaneous Playback |
Max. 16 CH |
|
|
Search |
Time slice / time / event / tag search |
|
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
Decoding Capability
|
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Live View/ Playback |
1CH 8MP; 4CH 1080P |
|
Alarm |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Mode |
Manual, sensor, motion, exception, smart events |
|
|
Input |
4CH alarm input; IPC alarm input supported |
|
|
Output |
1CH alarm output; IPC alarm output supported |
|
|
Triggering |
Record, snapshot, buzzer, preset, e-mail, etc. |
|
Network |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Interface |
RJ 45 100Mbps × 1 |
|
|
Protocol |
TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP,HTTP, HTTPs, 802.1x |
|
|
Incoming Bandwidth |
112 Mbps |
|
| Outgoing Bandwidth |
112 Mbps |
|
Mobile Device |
||
| Model |
QVN3116-2 |
QVN3132-2 |
| OS |
iOS, Andriod |
|
Storage |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
HDD Interface |
SATA3.0 × 2, max 8T per HDD | |
Backup |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Local Backup |
U disk, USB mobile HDD |
|
|
Network Backup |
Yes | |

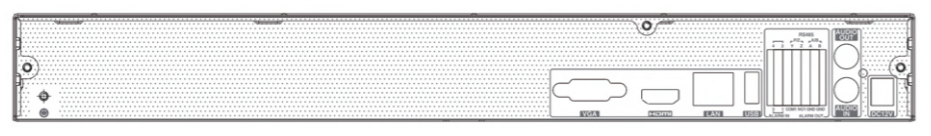

Port |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
USB |
USB 2.0 × 2 |
|
| RS485 |
Yes (full-duplex); connect to PTZ or keyboard |
|
|
Remote Controller |
Optional |
|
Others |
||
| Model |
QVN3116-2 |
QVN3132-2 |
|
Power Supply |
DC 12V/3A |
|
|
Consumption |
≤ 15W ( without HDD ) |
|
|

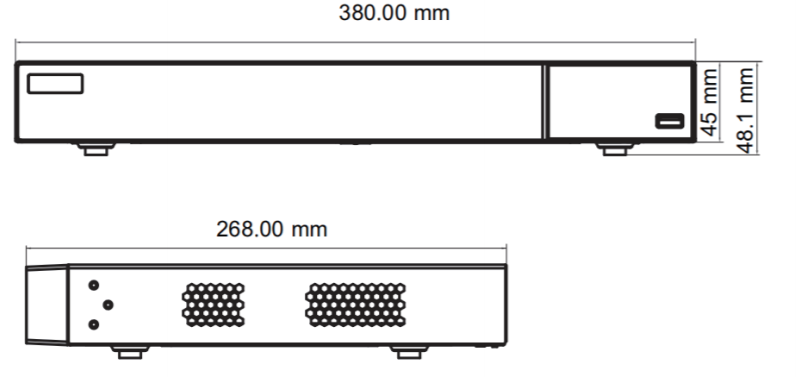

Dimensions（mm） |
380 × 268 × 45 ( W × D × H ) |
|
|
Work Environment |
-10 ～ 50 ℃，10% ～ 90% humidity |
|
