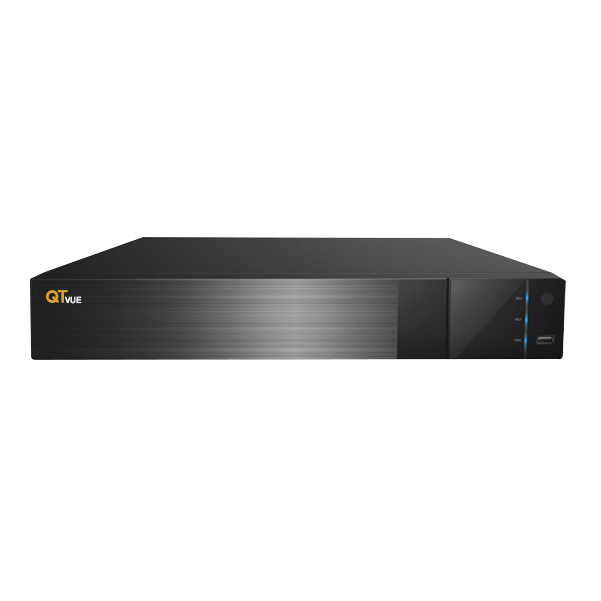

Model |
QVN3332-2 |
|
|
System |
OS |
Embedded Linux |
|
Video |
Network Input |
32 CH IPC input(16CH after enabling AI) |
|
Incoming/Outgoing Bandwidth |
192Mbps / 192Mbps |
|
|
Network Input Resolution |
8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ |
|
|
720P/960H/D1/CIF |
||
|
Output |
HDMI × 1 : 3840×2160@60fps/3840×2160@30fps/ 1920×1080/1280×1024/1024×768 |
|
|
VGA × 1 : 1920×1080/1280×1024/1024×768 |
||
|
Compression |
H.265S/H.265+/H.265/H.264 |
|
|
Multi-screen Display |
1/4/6/8/9/13/16/25/32/36 |
|
|
Audio |
Network Input |
32 CH IPC audio input(16CH after enabling AI) |
|
2-way Audio |
RCA × 1 |
|
|
Local Output |
RCA × 1 |
|
|
Compression |
G.711(U/A) |
|
|
Record |
Record Stream |
Dual stream recording |
|
Resolution |
8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
|
Frame Rate |
PAL: 25fps (NTSC format unsupported) |
|
|
Playback |
Simultaneous Playback |
Max 16 CH |
|
Search |
Time slice / time / event / tag search |
|
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
|
Decoding Capability |
Live View/ Playback |
1CH 8MP/ 4CH 1080P |
|
Alarm |
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
8 CH local alarm input; supports IPC alarm input |
|
|
Output |
4 CH |
|
|
Triggering |
Record, snap, preset, e-mail, etc. |
|
|
Face |
Channel |
16 CH |
|
Face Picture Database |
32 libraries |
|
|
5000 Face Pictures |
||
|
Computing Capability |
180 pictures / minute |
|
|
Face Picture Search |
Search by picture is supported |
|
|
Database Management |
Add, modify, delete and search face pictures |
|
|
Face Picture Adding |
Add face pictures through APP, WEB and external import |
|
|
External face picture enrollment |
Resolution：128 x 128 ～ 1920 x 1080 Size：≤ 70KB |
|
|
Format : jpg&jpeg |
||
|
Face Picture Comparison |
Supports allow list and block list alarm |
|
|
Face Track |
Yes |
|
|
Map of Face Track |
Reolution：≤ 2560 x 1920 Size：≤ 512KB |
|
|
Format : jpg&jpeg |
||
|
Statistic Graph of Face Information |
Bar graph, pie chart |
|
|
Statistic Mode of Face Information |
Statistics by day, week, month, quarter as well as customized time period |
|
|
Network |
Interface |
RJ45 1000 Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. |
|
|
Client Connection |
Max. 20 users access |
|
|
Mobile Device |
OS |
iOS, Andriod |
|
Storage |
HDD Interface |
SATA × 2, max 10T per HDD |
|
Backup |
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
|
Port |
USB |
USB 2.0 × 1, USB 3.0 × 1 |
|
Remote Controller |
Optional |
|
|
RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
|
|
Others |
Power Supply |
DC12V/4A |
|
Consumption |
≤ 10W ( without HDD ) |
|
|
Dimensions (mm) |
380 × 268 × 45 ( W × D × H ) |
|
|
Working Environment |
-10~ 50°C，10% ~ 90% humidity |
|
|
Certificate |
CE, FCC |
|
|
Environmental Protection |
Comply with Directive EU RoHS, WEEE, REACH |
|
