Specifications
System |
|
| Compression | Standard H.265 |
| OS | Embedded Linux |
Video |
|
|
Network Input |
64 CH IPC input |
|
IP Input Access Bandwidth |
320Mbps |
|
Network Access Format |
Up to 8MP |
|
Output |
HDMI × 2 : One of 4K × 2K / 1920 × 1080 / 1280 × 1024/ the other of 1920 × 1080 / 1280× 1024 VGA × 1 : 1920×1080/ 1280×1024 |
Audio |
|
|
Network Input |
64 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
Record |
|
|
Record Stream |
Dual stream recording |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC:30fps; PAL:25fps |
| Mode | Manual, timer,motion, sensor |
Playback |
|
|
Simultaneous Playback |
Max 16 CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record evwents |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Alarm |
|
| Mode |
Manual, sensor, motion,enception |
|
Input |
8 CH local alarm input, support IPC alarm input |
| Output | 4 CH |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Network |
|
|
Interface |
RJ 45 10/100/1000Mbps × 2 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x |
|
Web Cilent |
Max 10 users online monitorning |
Mobile Device |
|
| OS |
iOS, Andriod |
Storage |
|
| HDD | SATA × 8, e-SATA × 2, up to 8TB per HDD |
| Disk Array | RAID0, RAID1, RAID5, RAID6, RAID10, |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
Port |
|
| USB |
USB 2.0 x 2(one in the front panel and the other in the rear panel) USB 3.2 x 1(Rear panel ) |
| RS485 |
RS485 x 2; connectors for PTZ and keyboard |
|
Remote Controller |
Yes |
PoE |
|
|
PoE Ports |
100M RJ45 × 8 |
|
Standards |
IEEE802.3af |
|
Output Power |
Unlimited |
Decoding Capability |
|
|
Live View/ Playback |
1CH 8MP 4CH 1080P |
Others |
|
| Power Supply | ATX 250W |
|
Consumption |
≤ 15w (without HDD) |
|

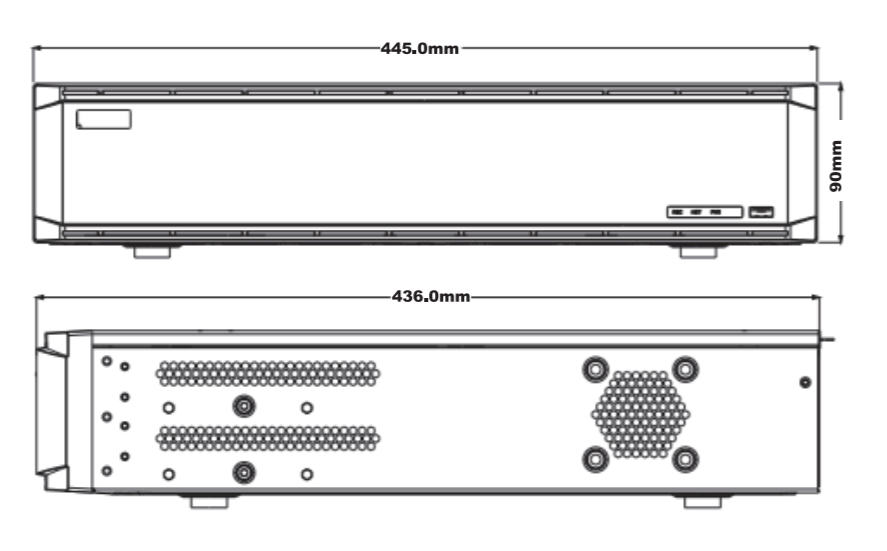

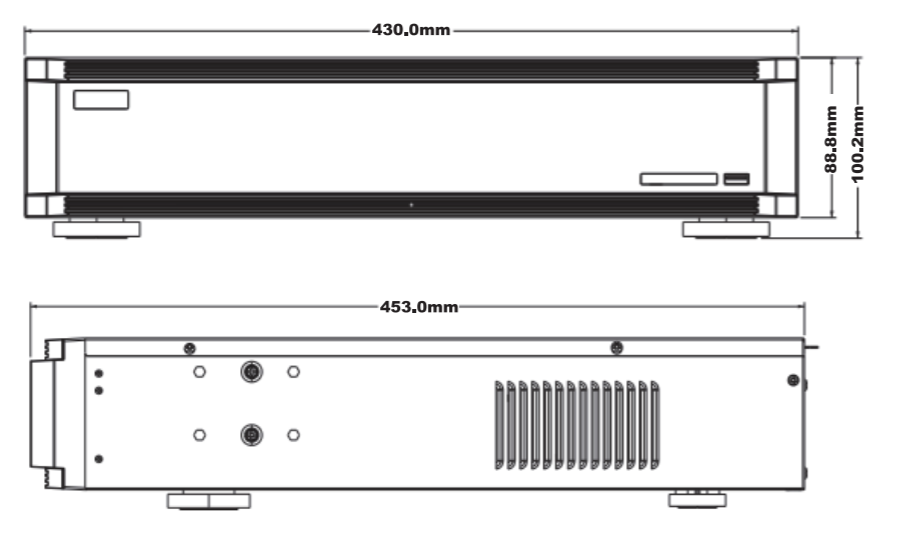

Dimensions(mm) |
430 × 453 × 89( W × D × H ); 445 × 436 × 90( W × D × H ) |
|
Work Environment |
-10 ~ 50 ℃, 10% ~ 90 % humidity |
