Specifications
Camera |
|
|
Image Sensor |
1 / 2.7 "CMOS |
|
Image Size |
1920 × 1080 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.03 lux@F2.5,AGC ON; 0 lux with IR 0.007 lux@F1.2,AGC ON; 0 lux with IR |
|
Lens |
2.8 mm @F1.85, horizontal field of view:116.6° |
|
Lens Mount |
M12 |
|
Wide Dynamic Range |
Digital WDR |
|
Day&Night Switch |
IR Cut Filter |
|
Defog |
Yes |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0 ~230 ; Tilt: 0°~71°; Rotation: 0°~360° |
Image |
|
|
Video Compression |
1 / 2.7 "CMOS |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Sub Stream |
60Hz : D1/CIF (1~30fps); 50HZ: D1/CIF (1~25fps) |
|
Main Stream |
60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
|
Third Stream |
60Hz : D1/CIF 480x240 (1~30fps); 50HZ: D1/CIF 480x240 (1~25fps) |
|
Bit Rate |
128 Kbps ~ 6Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic,
Sharpen,NR,etc. adjustable through client software or web
browser |
|
ROI |
Each ROI to be configured separately |
Wi-Fi |
|
|
Wireless Standards |
IEEE802.11b/g/n |
|
Frequency Range |
2.4GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
20MHz |
|
Security |
WEP, WPA-PSK/WPA2-PSK |
|
Wireless Range |
50m |
|
Transfer Rates |
11b: 11Mbps 11b: 54Mbps 11n: up to 150Mbps |
Interfaces |
|
|
Network |
RJ45 |
|
Video Output |
No |
|
Storage |
Built-in micro SD card slot;up to 128GB |
|
Alarm |
1CH arlarm input;1CH alarm output |
|
Hardware Reset |
Yes |
|
Audio |
|
|
Audio Input |
Built-in MIC×1 |
|
Audio Output |
Built-in Speaker ×1 |
|
Audio Compression |
G.711A/U |
|
Audio Bit Rate |
Self-adaption |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF, GB-T/28181-2011 |
|
Storage |
Network remote storage; micro SD card storage |
|
PoE |
YES |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS |
|
Smart Alarm |
Motion detection, sensor alarm, PIR alarm, SD card full,SD card error,IP conflict, cable disconnection |
|
General function |
Watermark, IP address filtering, video mask, heartbeat,password protection |
|
IR Distance |
Up to 10m |
|
PIR |
3D DNR Range: 7m |
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
< 4.5W |
|

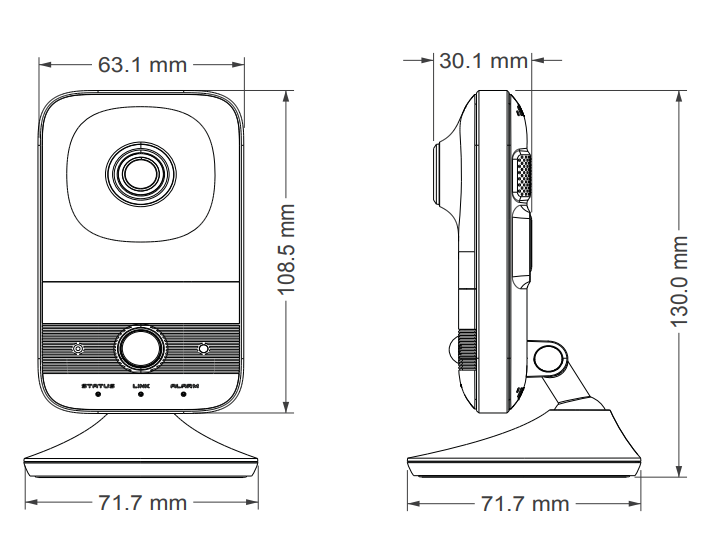

Dimensions (mm) |
130×71.7×71.7 |
|
Security |
WEP, WPA-PSK/WPA2-PSK |
|
Operating Environment |
-10 °C ~ 45°C(-14°F~113°F) Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 0.14KG |
|
Installation |
Ceiling mounting; Wall mounting; Desktop |
