Specifications
System |
|
|
OS |
Embedded Linux |
Video |
|
|

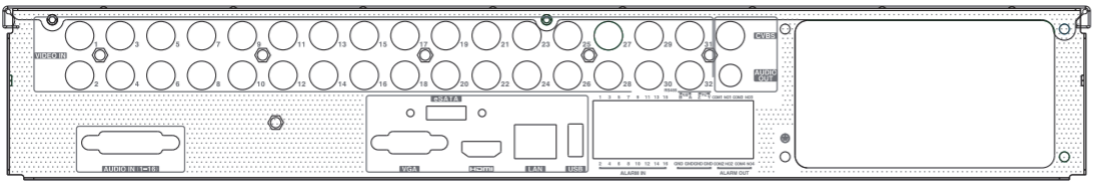

Analog Input |
BNC × 32 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) |
|
IP Video Input |
8CH (up to 24CH) Up to 5MP@30fps |
| Total Input | 40CH |
|
Output |
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
Compression |
H.264/H.265 |
Audio |
|
|
Input |
RCA x 16 |
|
Output |
RCA × 1 (linear, 600Ω) |
|
Two-way audio |
Take up channel one audio input |
|
Compression |
G.711(U/A) |
Record |
|
|
Frame Rate |
Analog Channel: 5MP Lite@10fps (PAL / NTSC) 4MP /1080P@12fps(PAL) / 15fps (NTSC) 1080PLite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
|
Resolution |
5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 |
|
Bit Rate |
32Kbps ~ 5Mbps |
|
Mode |
Manual, timer, motion, smart event |
Playback |
|
|
Playback |
16 CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record evwents |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Alarm |
|
|
Mode |
Manual, motion, exception, smart event |
|
Input |
16 |
| Output | 4 |
Network |
|
| Interface |
RJ 45 100Mbps × 1 |
|
Protocol |
TCP/ IP,PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP,SMTP |
|
Incomin Bandwidth |
40Mbps(Max. 88Mbps) |
|
Outgoing Bandwidth |
160Mbps |
Mobile Device |
|
| OS |
iOS, Andriod |
Storage
|
|
|
HDD |
SATA×4, up to 8TB per HDD; E-SATA×1 |
Backup |
|
|
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
Port |
|
|
RS 485 |
Full-duplex, connect to PTZ or keyboard |
|
USB |
USB 2.0 × 2 |
|
Remote Controller |
Optional |
Others |
|
|
Power Supply |
ATX-250W |
|
Consumption |
≤ 20W ( without HDD) |
|

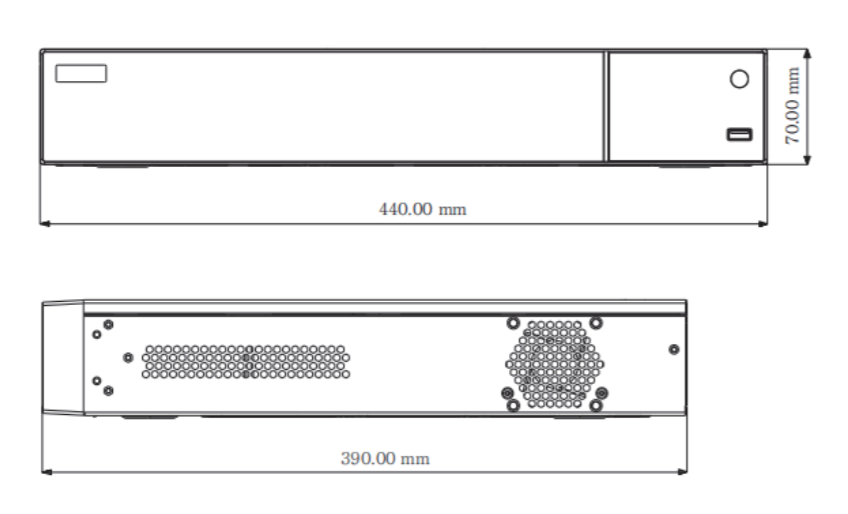

Dimensions（mm） |
440 × 390 × 70( W × D × H ) |
|
Working Environment |
-10 ～ 50 ℃，10% ～ 90% humidity |
