Specifications
Camera |
|
|
Image Sensor |
1 / 2.7 "CMOS |
|
Image Size |
2560×1440 |
|
Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR |
|
Lens |
2.8 ~ 12 mm @F1.4; Horizontal field of view:90.5° ~ 32.9° |
|
Lens Amount |
Φ14 |
|
Wide Dynamic Range |
Digital WDR |
|
BLC |
Yes |
|
HLC |
Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
Interfaces |
|
|
Network |
RJ45 |
|
Audio |
1CH built-in MIC |
|
Storage |
No |
|
Hardware Reset |
No |
|
Video Output |
No |
Image |
|
|
Video Compression |
H.265 / H.264 |
|
H.265 Compression Standard |
Main Profile@Leve4.1 High Tier |
|
Resolution |
5MP ( 2592 × 1944 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
60Hz : 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/720P(1~30fps) 50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps) |
|
Sub Stream |
60Hz : 720P(1~15fps)/D1(1~30fps)/CIF(1~30fps); 50HZ: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps); |
|
Third Stream |
60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps) |
|
Bit Rate |
64 Kbps ~ 5 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen,
NR,etc. adjustable through client software or web browser |
|
ROI |
Each ROI to be configured separately |
|
Audio Compression |
G711A / U |
Functions |
|
|
Remote Monitoring |
Web browsing, CMS remote control |
|
Interface Protocol |
ONVIF, GB-T/28181-2011 |
|
Storage |
Network remote storage |
|
PoE |
Yes |
|
Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP 802.1x, UPnP, HTTP, HTTPs, QoS |
|
Smart Alarm |
Motion detection |
|
General function |
Watermark, IP address filtering, video mask, heart beat, password protection |
|
IR Distance |
30~50m |
|
Ingress Protection |
IP67 |
|
Intelligent Analytics |
Object removal detection, abnormal video signal detection, intrusion
detection and line crossing detection (optional) |
Others |
|
|
Power Supply |
DC12V / PoE |
|
Power Consumption |
< 10W |
|

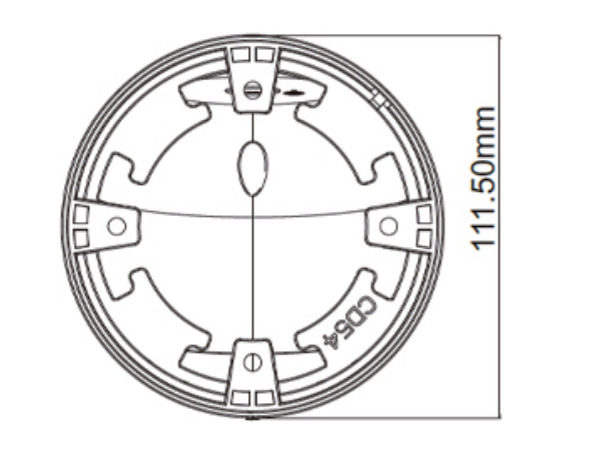

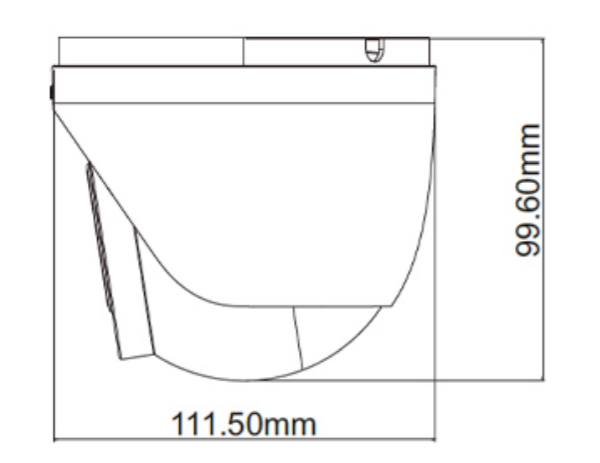

Dimensions ( mm ) |
Φ 111.5 × 99.6 |
|
Operating Environment |
-30 °C ~ 60°C(-22°F~140°F）
Humidity: less than 95 %(non-condensing) |
|
Weight ( net ) |
Approx. 0.64KG |
|
Installation |
Ceiling mounting; Wall mounting |
